GM 20k

General information Single station machine Double station machine Extruder information Single station machine Double station machine
Dimensions (Width/Length/Height) 3 200 / 5 400 / 3 350 mm 4 350 / 6 000 / 3 350 mm Screw diameter 80 mm 100 mm
Weight 16 300 kg 19 200 kg Extruder drive output 55 kW 115 kW
      Extruder output HD-PE 140 kg/h 270 kg/h



Clamping force Product volumes Shuttle stroke
200 kN 0,4 - 20 l

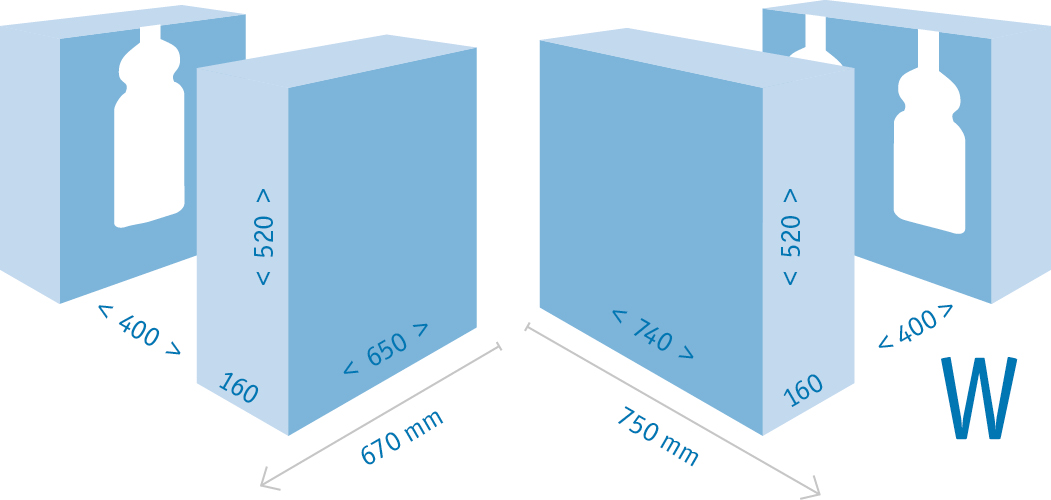

GM 20k.E - 670 mm



GM 20k.EW - 750 mm





GM 20k





Standard center distance
  2 Cavities 3 Cavities 4 Cavities 5 Cavities 6 Cavities 7 Cavities 8 Cavities
GM 20k.E 300 mm 200 mm 150 mm  120 mm 100 mm _ _
GM 20k.EW 350 mm 230 mm  170 mm 135 mm 115 mm 95 mm 85 mm







GM 20k



Mechanism

Drive

Mould closing electric
Carriage movement electric
Blow pin movement electric
Parison cutter pneumatic
Deflashing pneumatic
Extruder bobbing electric
Wall thickness control electric







Machine video sequence
