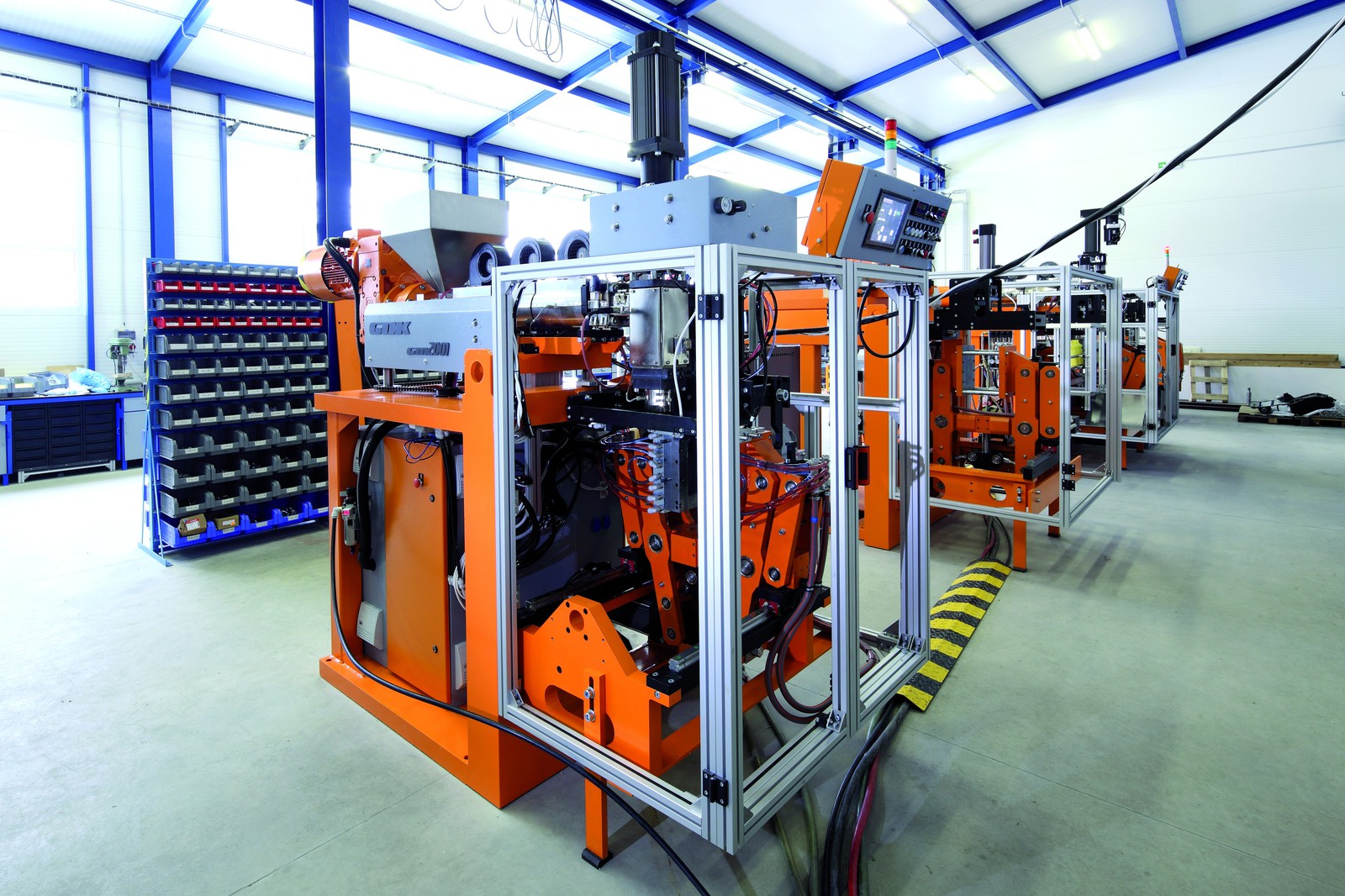

GM 2000
| General information | Single station machine | Double station machine | Extruder information | Single station machine | Double station machine |
|---|---|---|---|---|---|
| Dimensions (Width/Length/Height) | 1 500 / 3 000 / 2 500 mm | 2 500 / 3 800 / 2 500 mm | Screw diameter | 45 mm | 60 mm |
| Weight | 2 700 kg | 4 000 kg | Extruder drive output | 15 kW | 22 kW |
| Extruder output HD-PE | 37 kg/h | 70 kg/h |
| Clamping force | Product volumes | Shuttle stroke |
|---|---|---|
| 60 kN | 0,3 - 3 l | GM 2000 - 300 mm |
| GM 2000 W - 350 mm |
| Standard center distance | |||
| 2 Cavities | 3 Cavities | 4 Cavities | |
| GM 2000 | 100 mm | 70 mm | - |
| GM 2000 W | 130 mm | 100 mm | 70 mm |
Mechanism |
Drive |
|
| Electric (.E) | Pneumatic (.P) | |
| Mould closing | electric | pneumatic |
| Carriage movement | electric | pneumatic |
| Blow pin movement | electric | pneumatic |
| Parison cutter | pneumatic | pneumatic |
| Deflashing | pneumatic | pneumatic |
| Extruder bobbing | pneumatic | pneumatic |
| Wall thickness control | electric | electric |
|
Machine video sequence |
||
|---|---|---|
| Equipped by pneumatic and hydropneumatic drive. | Single head for production of a 2 lt bottle with handle. | Including labelling robot. |
