GM 750

Allgemeine Informationen Einplatz- Anlage Zweiplatz- Anlage Informationen des Extruders Einplatz- Anlage Zweiplatz- Anlage
Maße (Breite/Länge/Höhe) 1 200 / 2 400 / 2 400 mm 2 000 / 2 700 / 2 400 mm Schnecke Durchmesser 32 mm 40 mm
Gewicht 1 000 kg 1 700 kg Antriebsleistung Extruder 7,5 kW 11 kW
      Extruder-Leistung HD-PE 14 kg/h 23 kg/h

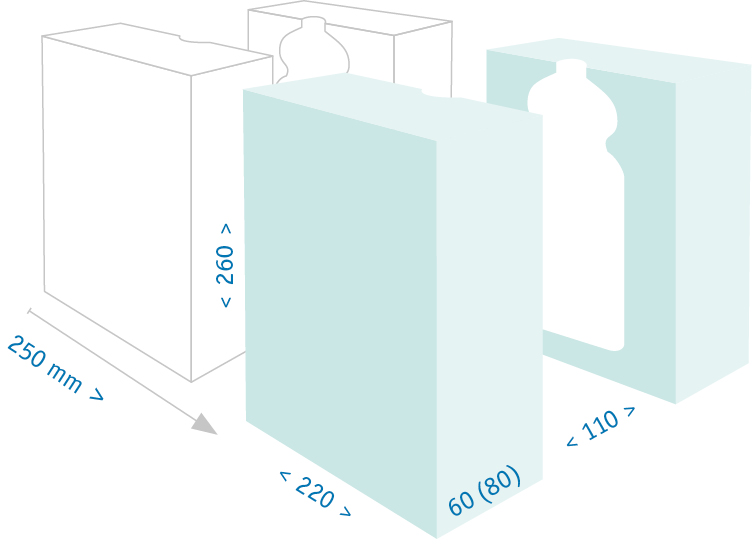

Schließ-kraft Produktvolumen Hin- und Herfahrt Takt-bewegung
30 kN 0 - 1,5 l 250 mm

 GM 750





Standard-Mittenabstand
2 Kavitäten 3 Kavitäten
90 mm 50 mm















GM 750

Mechanismus

Antrieb

Elektrisch (.E) Hybrid (.X) Pneumatisch  (.P)
Blasformschließen elektrisch pneumatisch pneumatisch
Formtransport elektrisch elektrisch pneumatisch
Blasdornbewegung elektrisch elektrisch pneumatisch
Parisontrennere pneumatisch pneumatisch pneumatisch
Stanze pneumatisch pneumatisch pneumatisch
Extruderhub pneumatisch pneumatisch pneumatisch
Wanddickensteuerung elektrisch elektrisch elektrisch







Videosequenz der Maschine

Single head for production of a technical product for automotive industry "Seal dust"
