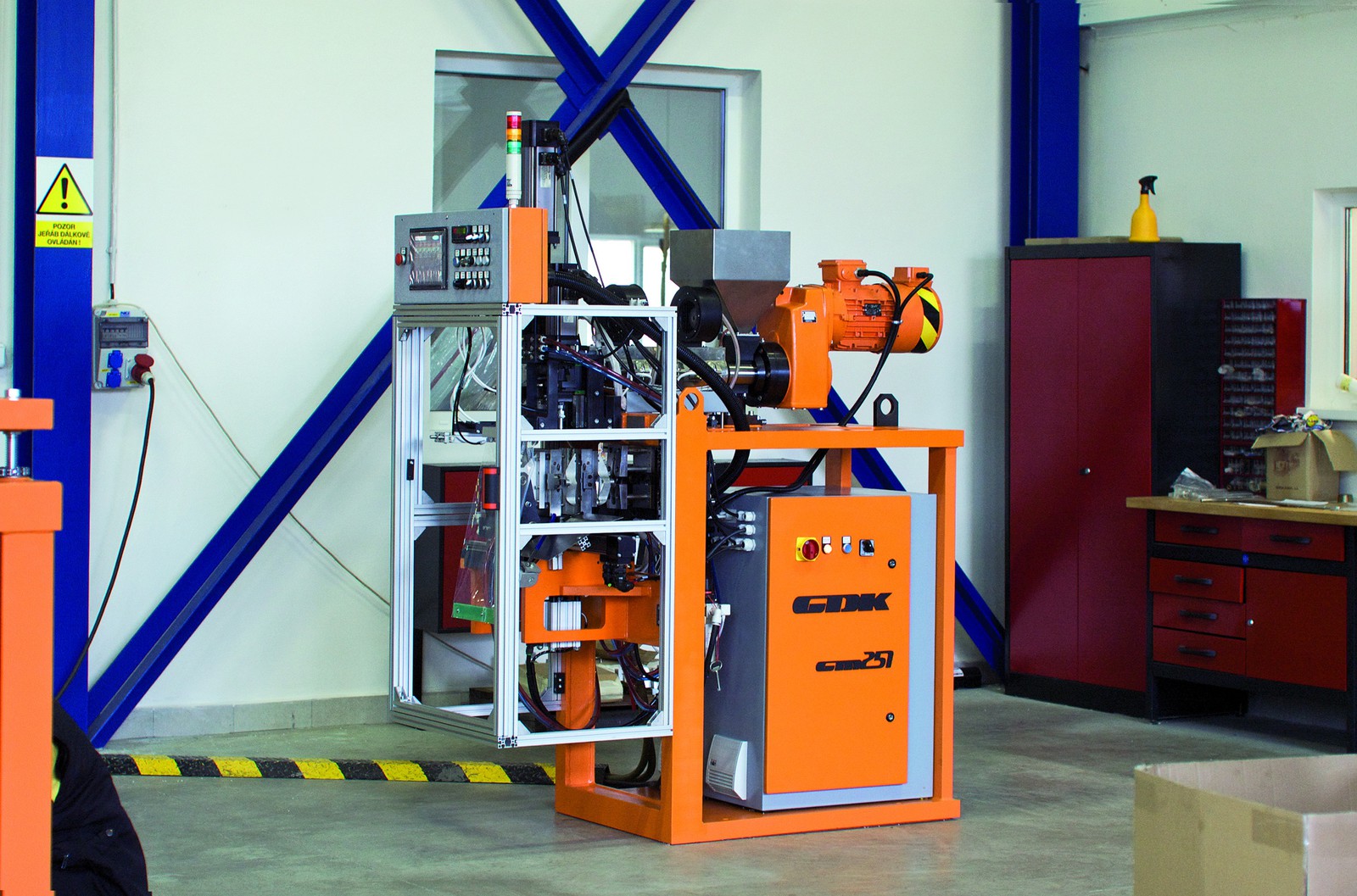

GM 250

Allgemeine Informationen Einplatz- Anlage Zweiplatz- Anlage Informationen des Extruders Einplatz- Anlage Zweiplatz- Anlage
Maße (Breite/Länge/Höhe) 900 / 1 700 / 2 100 mm 1 400 / 2 200 / 2 100 mm Schnecke Durchmesser 25 mm 32 mm
Gewicht 800 kg 1 500 kg Antriebsleistung Extruder 4 kW 7,5 kW
      Extruder-Leistung HD-PE 7 kg/h 14 kg/h





Schließ-kraft Produktvolumen Hin- und Herfahrt Takt-bewegung
12 kN 0 - 0,35 l 150 mm

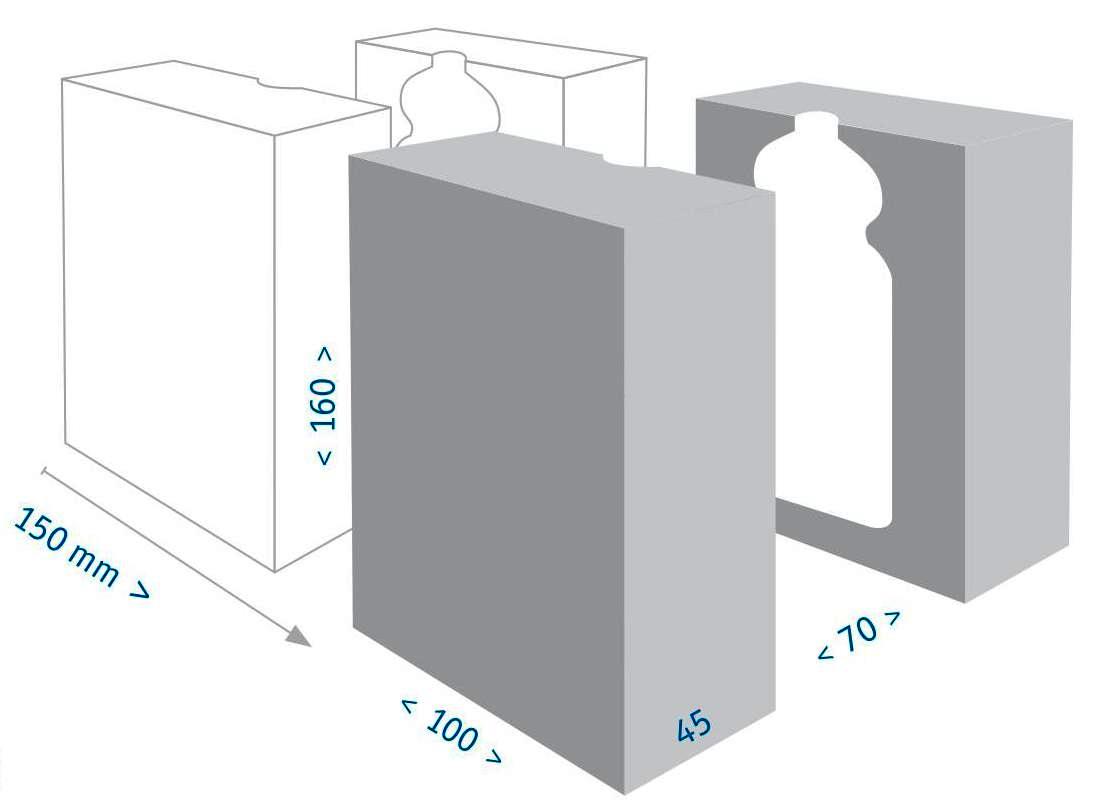

GM 250 Mould dimensions







Standard-Mittenabstand
2 Kavitäten
50 mm

















GM 250

Mechanismus

Antrieb

Hybrid (.X) Pneumatisch  (.P)
Blasformschließen pneumatisch pneumatisch
Formtransport elektrisch pneumatisch
Blasdornbewegung elektrisch pneumatisch
Parisontrennere pneumatisch pneumatisch
Stanze pneumatisch pneumatisch
Extruderhub pneumatisch pneumatisch
Wanddickensteuerung elektrisch

elektrisch







Videosequenz der Maschine

Single head for a production of 100 ml technical product Single head for a production of 20 ml bottle
